Adding UNUM Insight Analytics Flow for Network Visibility

UNUM Insight Analytics Flow  is an application developed by Pluribus Network that enables the network administrator to extract the analytical value from the telemetry data reported by the network switches powered by Pluribus Networks Netvisor® network operating system.

UNUM connects the switches as part of the Netvisor® fabric to gain visibility into the network, and extract all the telemetry data made visible by the Pluribus Network Operating System.

Once data is collected, UNUM Insight Analytics Flow relies upon a modern search engine database infrastructure to store, aggregate, filter, correlate and visualize vast amounts of data in real-time as well as with a powerful “time machine” functionality.

As shown in the figure below UNUM Insight Analytics Flow can be deployed in a Virtual Wire fabric topology, by connecting the UNUM Insight Analytics Flow server(s) to the fabric management network. Using Netvisor® API, UNUM Insight Analytics Flow establishes a connection to any Virtual Wire switch in fabric to gain visibility into the entire fabric network and extract all the device layer telemetry data made visible by the distributed Pluribus Network Operating System.

Once data is collected, UNUM Insight Analytics Flow relies upon a modern search engine database infrastructure to store, aggregate, filter, correlate and visualize vast amount of data in real time.

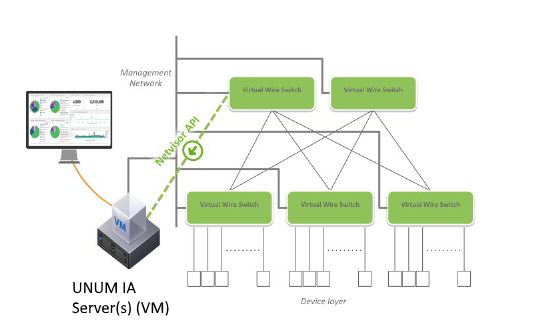

Figure VW-14 - UNUM Insight Analytics Flow

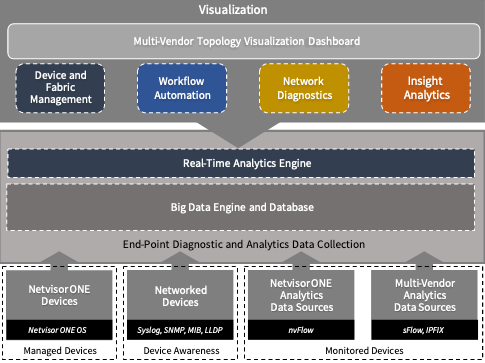

Figure VW-15 - Overview of  UNUM Insight Analytics Flow Topology

Note: Adding UNUM Insight Analytics  to your network requires a separate license. Please see the Pluribus UNUM Management Platform documentation.
