License


Selecting Menu Bar → License displays the License dashboard. The License tab highlights.


There are features and functions used in Arista NetVisor UNUM and Insight Analytics that are common throughout the user interface (UI). Please refer to the Common Functions section for more information on the use of these functions and features.


The NetVisor UNUM Configuration License module provides a convenient method of installing and managing NetVisor UNUM licenses.


Select the License tab to review, install and activate licenses.


NetVisor UNUM Platform Configuration License Status & Installed Licenses


There are two methods to install licenses, NetVisor UNUM Not Connected to Internet or NetVisor UNUM  Connected to Internet


There are generally two steps, first Activate the license and then Install the license key.


NetVisor UNUM Not Connected to Internet


General Process


1)Log into Customer Portal from a machine connected to the Internet.

Use your provided support credentials. If you do not have credentials for the Customer Portal, please Contact Support

You may be prompted to re-enter your login credentials. Once you are logged in, click on the Licensing Tab.

2)Go to Activations (see figures below).

3)Using the Install License Key button locate the Machine ID (see figure below) from the NetVisor UNUM dashboard.


Install License Key and Machine ID


4)Copy the NetVisor UNUM Machine ID and enter that into the Customer Support Portal Licensing Dashboard and click Activate (see figures below).

5)Once activated, click the Machine ID and your license will be displayed.

6)Copy the license key from the Licensing Dashboard and paste it into NetVisor UNUM.

Pluribus Networks Customer Portal


Upon successfully logging in you are greeted by a welcome screen. Click on the Licensing Tab.


Pluribus Networks Customer Portal Welcome Screen


You may be prompted to re-enter your login credentials. Enter your login credentials.


Pluribus Networks Cloud NetVisor UNUM Login Screen


You may see the Welcome to PN Cloud screen. Review the Activate Options and Download Software information.


You have the option to select "Don't show me this again".


Pluribus Networks Cloud NetVisor UNUM Welcome Screen


Click Got it! to continue and click on the Licensing Tab. Select Activations.


Activation Keys are displayed for your activated devices.


Select and enter license and click on the Activate button. You can Deactivate devices using the same interface.


Pluribus Networks Cloud NetVisor UNUM Activate / Deactivate Screen


Click on a NetVisor  UNUM License row in the dashboard. A list of activated Machine ID numbers displays with Status, License Key information and Deactivate.


Enter your NetVisor UNUM Machine ID number and click Activate.


Pluribus Networks Cloud NetVisor UNUM Activate Machine ID


Enter the Machine ID and click Activate.


Device / Machine Activated


The latest NetVisor UNUM activation appears in the dashboard.


Pluribus Networks Cloud NetVisor UNUM Machine ID Activated


After activation, click on License Key to obtain your License Keys.


Pluribus Networks Cloud NetVisor UNUM License Key


Use the Copy to Clipboard feature to conveniently save the License Key. Click Close to continue.


Note: License Enforcement – Once the license limit is reached you see an alert on the dashboard. No further Flow data is stored. NetVisor UNUM Insight Analytics Flow is not available as an application if there is no Analytics license installed.


Login to your NetVisor UNUM instance. Go to Menu Bar → License and select Install License Key.


Paste or Enter the License Key and click Install to continue. Click Cancel to return to the previous screen.


NetVisor UNUM Platform Configuration Install License Key & Machine ID


Your NetVisor UNUM instance is now licensed and activated.


Deactivate License


Login to the License Cloud Server (LCS) and find the license for the failed NetVisor UNUM instance.


Please review the detailed instructions about logging in to the LCS.


If you previously recorded your NetVisor UNUM Machine ID, locate the Machine ID in the license list and deactivate the associated license.


Pluribus Networks Cloud NetVisor UNUM Select Machine ID for Deactivation


Select the license to be deactivated and click Deactivate and Close.


Pluribus Networks Cloud NetVisor UNUM Deactivate a Machine

The license is deactivated.


NetVisor UNUM Connected to Internet


1)Connect to the LCS by clicking on License Cloud Server and entering your credentials. The NetVisor UNUM Machine ID auto-populates in the pop-up window.

2)Any license purchases will be downloaded and available in NetVisor UNUM.

3)Activate and install the license SKU.


License Server Connection - Credentials and Machine ID



Activated Licenses


Once activated, active licenses are displayed in the dashboard.


NetVisor UNUM Platform Configuration License Status Activated Licenses


Inactivated Licenses


Available and inactivated license display in the dashboard.


Inactivated licenses are displayed by scrolling down through the dashboard.


To activate and install licenses click Activate & Install.


NetVisor UNUM Platform Configuration License Status - Inactivated Licenses


Expiring Licenses


Expiring licenses are displayed in the dashboard along with their relevant data. Remove these from the dashboard using the Trash Bin icon as required.


NetVisor UNUM Platform Configuration License - Expiring Licenses


Expired License


Expired licenses are displayed in the dashboard along with their relevant data and are removed from the dashboard using using the Trash Bin icon as required.


NetVisor UNUM Platform Configuration License - Expired License



Warning: License expiring warnings start ten (10) days before the expiry date. A grace period of five (5) days begins on the expiry date and after the initial ten-day warning.


Filtering Function

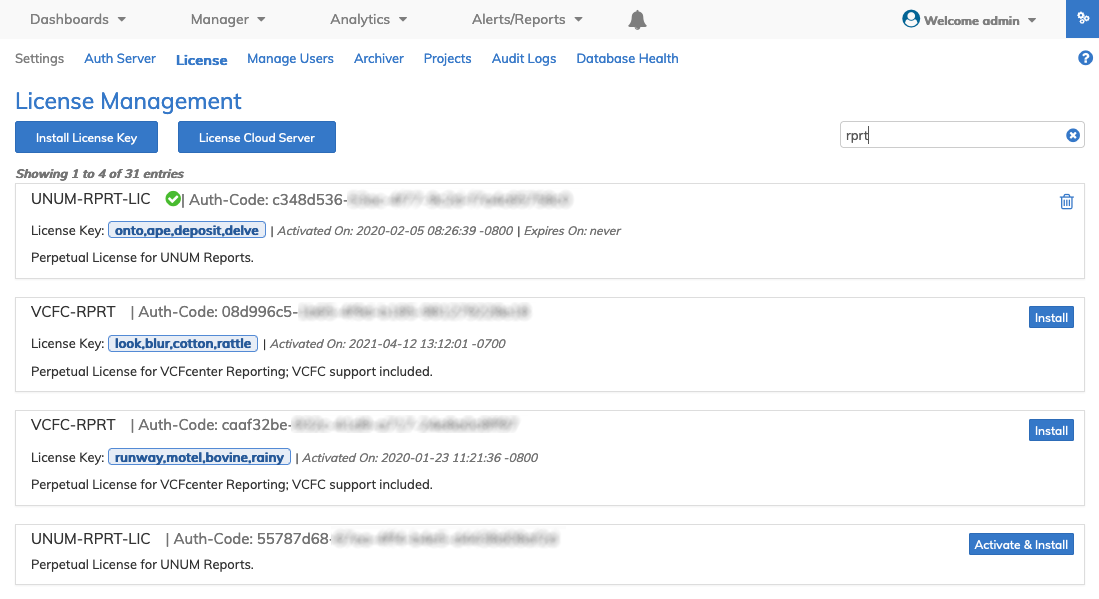

Entering specific license filtering criteria updates the license dashboard with only those licenses matching the search values as shown in the example below:


NetVisor UNUM Platform Configuration License -Filter Licenses


License Notifications


NetVisor UNUM displays the following license status results after a Topology discovery process.


Valid License

No notifications triggered.

Expired License

Notification is displayed in Alarm Bell with switch and license details. Appears in the All Notifications dashboard.

License in Grace Period

Notification is displayed in the Alarm Bell with periodic messages. Appears in the All Notifications dashboard.

Expired Seed Switch License

Communication failure is displayed in the Alarm Bell. Appears in the All Notifications dashboard.


Warning: A license grace period occurs ten days before expiry and five days after.
