Option 8: Advanced Settings


Option 8: Advanced Settings, provides you access to additional tools:




NetVisor UNUM Options Menu


These advanced settings are:


Option 1:

Backup NetVisor UNUM Configuration

Backup your NetVisor UNUM configuration.

Option 2:

Restore NetVisor UNUM Configuration

Restore your NetVisor UNUM configuration from a backup.

Option 3:

Delete NetVisor UNUM Backup

Delete a NetVisor UNUM backup.

Option 4:

Enable | Disable Debug Mode

Enable or disable debug mode. Typically done after contacting Technical Support.

Option 5:

Configure Collector Services

Caution: Please contact Technical Support before attempting to use this function.

Option 6:

NFS Settings

Configure your NFS settings for backup and restore.

Option 7:

Install System Monitoring

Install system monitoring tools.

Option 8:

Reconfigure PNC Connection

Caution: Please contact Technical Support before attempting to use this function.

Option 9:

Install License Key

Note: Internal Arista use only.

Option 10:

Display License Information

Display your NetVisor UNUM licensing information.

Option 11:

Change ONIE Provision Time

Caution: Please contact Technical Support before attempting to use this function.

Option 12:

Configure VW / PB Discovery Delay

Caution: Please contact Technical Support before attempting to use this function.

Option 13:

Enable/Disable vPort Tagging

Enable or disable Kubernetes and VMWare visibility in the Insight Analytics Connections and Switch Analytics vPort tables.

Option 14:

Enable/Disable VTEP Mesh Ping

Enable or disable the VTEP Mesh Ping feature. The default state is disabled.

Option 15:

Configure VTEP Mesh Ping Frequency (Minutes)

VTEP Mesh Ping Interval in minutes from 3 to 60 minutes. The default value is 5.

Option 16:

Configure VTEP Ping Packet Count

VTEP Ping Packet Count from 5 to 20. The default value is 5.


NetVisor UNUM Advanced Settings



Note: The Backup and Restore functionality is for Configuration Settings only. Analytical Data is not backed up.


Backup NetVisor UNUM Configuration


Select Option 1 to backup your configuration.


Option 1 - Advanced Settings Backup Configuration - NFS Mount not configured


The Backup and Restore function configuration is dependent on the NetVisor UNUM instance. A standalone NetVisor UNUM instance requires an NFS mounted share.


Note: In a clustered NetVisor UNUM environment data is replicated automatically across the nodes.


If an NFS mounted share is not configured an error message is displayed as shown in the above image.


To configure an NFS share, use the following steps to set up the Backup and Restore function.


Note: These instructions are intended as an example running under Linux. The actual configuration of an NFS mounted share may differ and is dependent on the systems used on your network. Configuration files in the /home/vcf/srv/vcf/config directory and the /home/vcf/srv/maestro directory are backed up to an NFS location under the /home/vcf/var/vcf/data/snapshots directory.


NFS Server Configuration


On the intended NFS server and at a Linux prompt perform the following steps:


1)Run sudo apt-get update

2)Run sudo apt install nfs-kernel-server

3)Create the share directory. For example: /var/remote_unum_backups

4)Add this directory to the /etc/exports file. using an editor such as nano and add the following line:

/var/remote_unum_backups *(rw,sync,no_subtree_check).

5)Run chmod 777 on the /var/remote_unum_backups folder.

6)Restart NFS services using  sudo service nfs-kernel-server restart.

7)Run the command showmount -e to display the export list. In this example, the output is:

Export list for <my_nfs_server_name>:

/home/vcf/remote_unum_backups *


NFS Client Configuration on the NetVisor UNUM Instance


On the standalone NetVisor UNUM instance run the following process to mount the NFS storage:


Select Option 6 followed by Option 1 to configure your NFS Client.


Option 6 - Advanced Settings Backup Configuration


Note: Please stop NetVisor UNUM before setting the NFS Client.


The following is an example configuration only. Configure the NFS settings per your specific requirements.


Option 6 - Advanced Settings Backup Configuration



Press any key to continue.


After the NFS mount finishes the menu screen updates with the NFS host and path settings.


Option 6 - Advanced Settings NFS Configuration


When the NFS configuration completes, return to the Advanced Menu and then exit the Advanced Settings menu.


Use Option 3 to restart NetVisor UNUM from the main menu.


Option 3 - Start NetVisor UNUM



Backup NetVisor UNUM Configuration


Return to the Advanced Menu and select Option 1 to backup your configuration.


Option 1 - Advanced Settings Backup Configuration


Press any key to continue.


Restore NetVisor UNUM Configuration


The Backup and Restore functions and the configuration is dependent on the NetVisor UNUM instance. A standalone NetVisor UNUM instance requires an NFS mounted share. Refer to the instructions above to configure an NFS Server and the NetVisor UNUM NFS Client.


Select Option 2 to restore your configuration.


Select the applicable backup file from the list of Available Backups and follow the on-screen instructions.


Note:NetVisor UNUM automatically restarts during the process.


Option 2 - Advanced Settings Restore Configuration


Option 2 - Advanced Settings Restore Process


Press any key to continue.


Delete NetVisor UNUM Backup


To delete a configuration backup select Option 3 and follow the on-screen instructions.


Option 3 - Advanced Settings Delete Backup


Option 3 - Advanced Settings Delete Backup Complete


Press any key to continue.


Enable | Disable Debug Mode


Caution: Please contact Technical Support before attempting to use the Enable | Disable Debug Mode function.


To enable or disable the Debug Mode select Option 4


When enabling or disabling extended logging follow the on-screen instruction to Stop and Start NetVisor UNUM services.


Option 8 - Enable / Disable Debug Mode


Option 8 - Debug Mode Enabled



Note: The restart dialog includes the warning debug services are enabled - WARNING: debug mode is enabled.


Disable Debug


Select Option 4 to disable the Debug mode and follow the on-screen instruction to Stop and Start NetVisor UNUM services.


Option 8 - Debug Mode Disable


Option 8 - Debug Mode Disable Restart


Note: When Debug mode is disabled the restart dialog does not contain any references to Debug mode.


Configure Collector Services


Option 5 enables and disable NetVisor UNUM Collector services.


Caution: Please contact Technical Support before attempting to use the Configure Collector Services function.


Mount NFS


Select Option 6 NFS Settings followed by Option 1 to mount your NFS Client.


Note: Please stop NetVisor UNUM before setting the NFS Client.


The following is an example configuration only. Configure the NFS settings per your specific requirements.


Option 6 - Advanced Settings Mount NFS



Unmount NFS


Select Option 6 followed by Option 2 to unmount your NFS Client.


Note: Please stop NetVisor UNUM before setting the NFS Client.


Option 6 - Advanced Settings NFS Settings


Option 2 - Advanced Settings Unmount NFS Complete


Install Monitoring System


When upgrading from a installed NetVisor UNUM 5.2.0 version, the monitoring tools do not install automatically.


To install the monitoring tools, Select Option 7. Enter your NetVisor UNUM password.


The monitoring tools install without any further user interaction.


Option 7 - Install Monitoring Tools


Press any key to continue.


Reconfigure PNC Connection


Caution: Please contact Technical Support before attempting to use this function.


Select Option 8, Reconfigure PNC Connection, to update the Pluribus Networks Cloud URL.


The current PNC URL is displayed.


Only if directed by Technical Support enter the new PNC URL.


Option 8 - Reconfigure PNC Connection

Press any key to continue.


Install License Key


Note: Internal Arista Networks use only.


Select Option 9, Install License Key, to install a NetVisor UNUM license.


Enter your NetVisor UNUM password and enter the License Key.


Entering an invalid license key results in an error.


Option 9 - Install License Key


Press any key to continue.


Display License Information


Select Option 10, Display License Information, to view installed NetVisor UNUM license details.


Enter your NetVisor UNUM password.


NetVisor UNUM displays the license status.


Option 10 - Display License Information


Press any key to continue.


Change ONIE Provision Time


Caution: Please contact Technical Support before attempting to use this function.


To change the ONIE Provision Time setting, select Option 11.


Enter the new time in seconds. NetVisor UNUM updates the time setting. Press any key to continue.


Option 11 - ONIE Provision Time


Configure VW / PB Discovery Delay


Caution: Please contact Technical Support before attempting to use this function.


To change the VW / PB Discovery Delay Time setting, select Option 12.


Enter the new time in seconds. NetVisor UNUM updates the time setting. Press any key to continue. Restart UNUM to use the new value.


Option 12 - Configure VW / PB Discovery Time


Note: The default setting is 30 seconds and should not be changed unless advised by Arista Networks.


Enable/Disable vPort Tagging


Enable or disable Kubernetes and VMWare visibility in the Insight Analytics Connections and vPort tables.


To Enable/Disable vPort Tagging setting, select Option 13.


Option 13 - Enable/Disable vPort Tagging

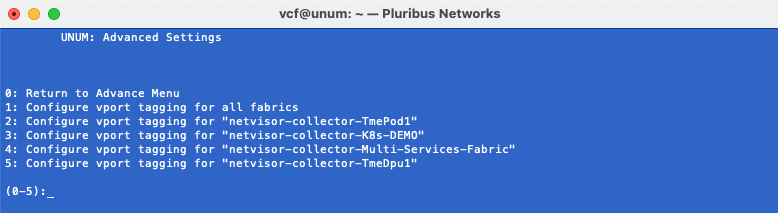

Select the required Fabric from the list of options.


Option 13 - Enable/Disable Select Fabric(s)


Note: Option 1 enables tagging for all fabrics.

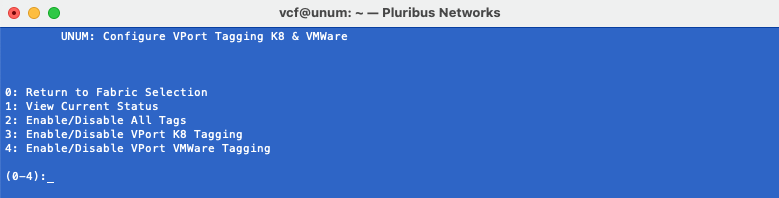

After selecting a Fabric, view Current Status or Enable/Disable tagging, as required.


Option 13 - Tagging Status


Select Option 1 to review current status.

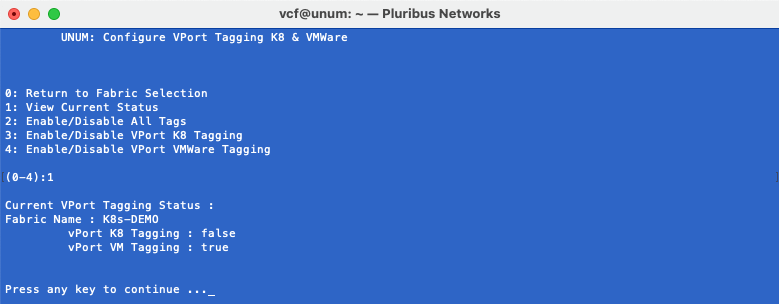

Option 13 - Tagging Current Status


To enable/disable tagging for Kubernetes or VMware, NetVisor UNUM must first be stopped, as shown in the example below.

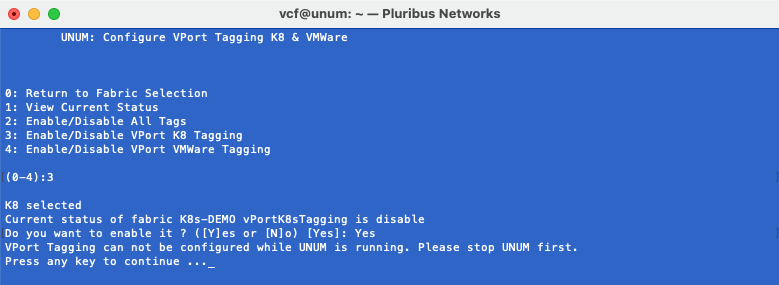

Option 13 - Enable Tagging


Enable/Disable VTEP Mesh Ping


To Enable/Disable VTEP Mesh Ping, select Option 14.


Option 14 - Enable VTEP


Select [E]nable to enable the VTEP Mesh Ping


Note: Enabling or disabling the VTEP Mesh Ping feature or changing its associated values does not require a NetVisor UNUM restart.


Configuration options include:


[D]isable – Disable the VTEP Mesh Ping function.

[C]ancel – Cancel to exit the setup feature without making any changes.

Option 14 - VTEP Enabled


UNUM confirms the status change. Press any key to return to the previous menu.


Note: The VTEP state may be blank the first time the VTEP Mesh Ping is enabled. Subsequent changes display the status of the VTEP Mesh Ping as "True" or "False".


Configure VTEP Mesh Ping Frequency


To set the VTEP Mesh Ping Frequency, select Option 15. The default value is 3.


Option 15 - Configure VTEP Mesh Ping Interval


Enter a frequency interval value from 3 to 60 minutes.

Option 15 - VTEP Mesh Ping Interval


UNUM confirms the status change. Press any key to return to the previous menu.


Note: The VTEP interval value may display "0" the first time the VTEP Mesh Ping is enabled. Subsequent changes display the current interval value unless updated.


Configure VTEP Ping Packet Count


To set the VTEP Ping Packet Count, select Option 16. The default value is 5.


Option 16 - Configure VTEP Mesh Ping Packet Count.


Enter a ping packet count value from 5 to 20 packets.

Option 16 - Configure VTEP Mesh Ping Packet Count Value.


UNUM confirms the status change. Press any key to return to the previous menu.


Note: The VTEP ping packet value may be blank the first time the VTEP Mesh Ping is enabled. Subsequent changes display the current ping packet count unless updated.
